Oval Point Set Screw Size Chart - Steel(SUM24)

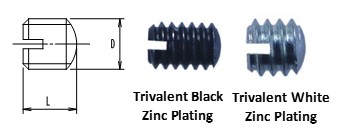

Oval point slotted set screw With plating

Material : Free-cutting steel(SUM24L Equivalent material)

Strength Class : 14H(Set screw with Oval point)

The rounded tip of the DEL standard has a more rounded shape compared to the current JIS standard. (The ISO standard does not include a rounded tip.)

Nominal diameter (D) Pitch	M1 P0.25	M1.2 P0.25	M1.4 P0.3	M1.6 P0.35	M1.7 P0.35	M2 P0.4	M2.3 P0.4	M2.5 P0.45

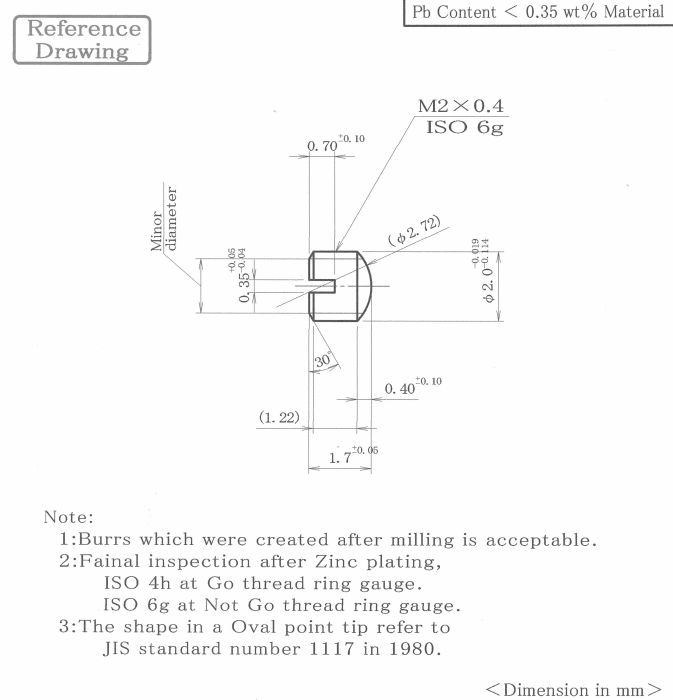

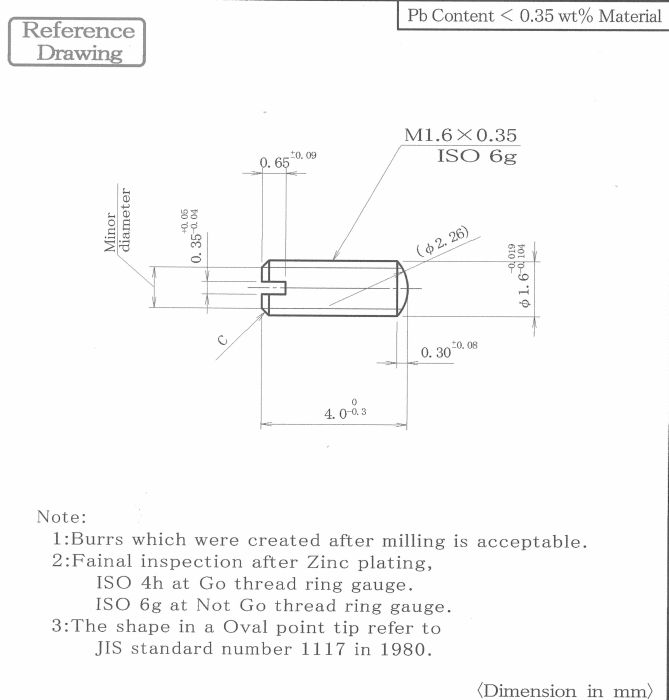

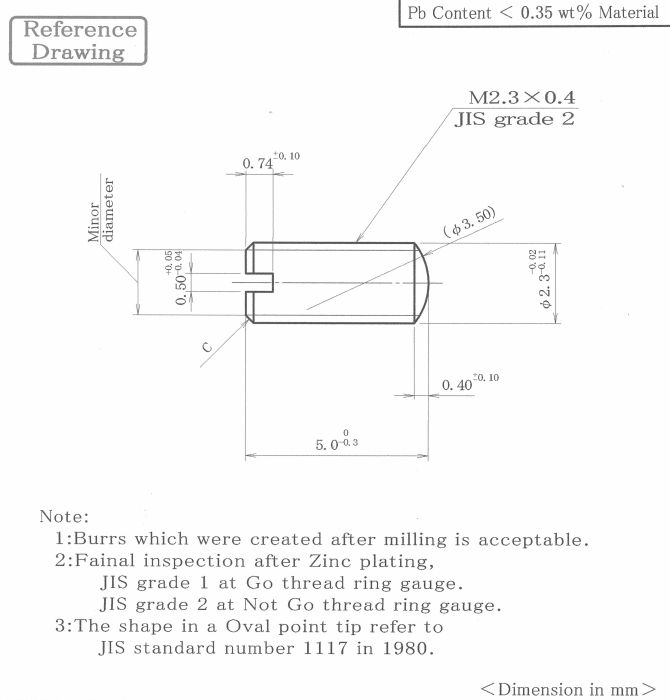

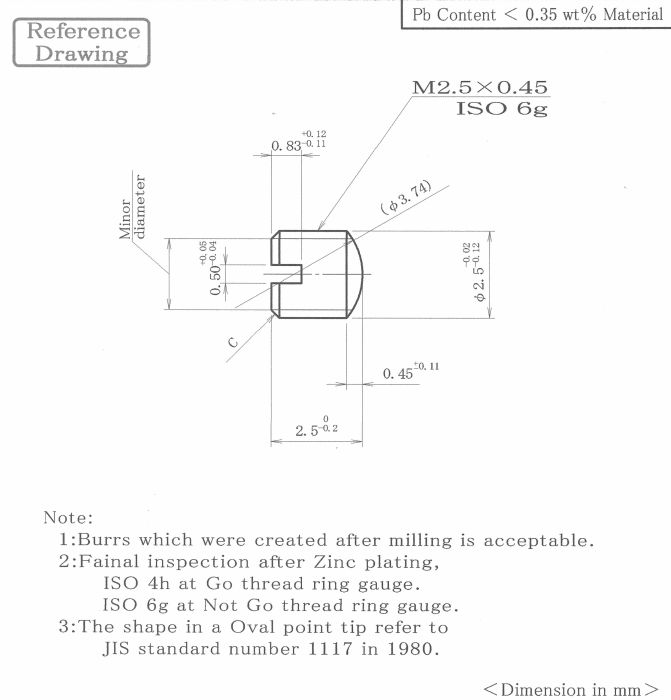

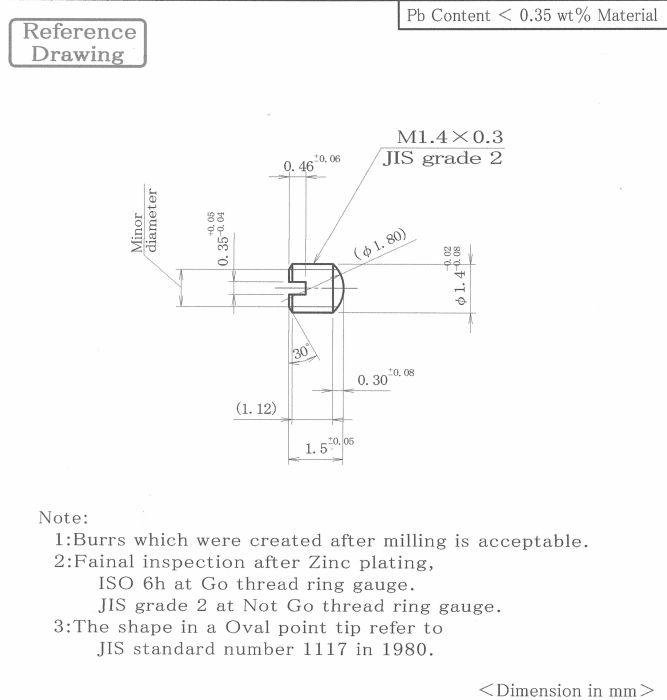

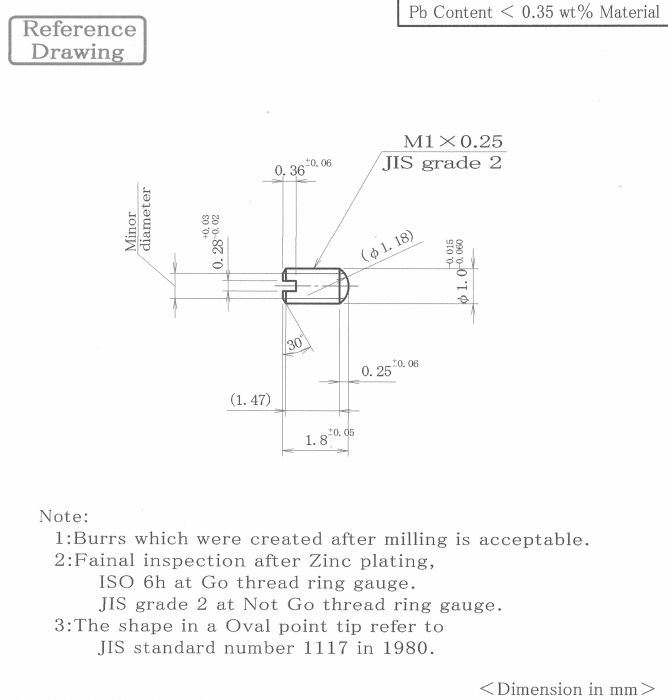

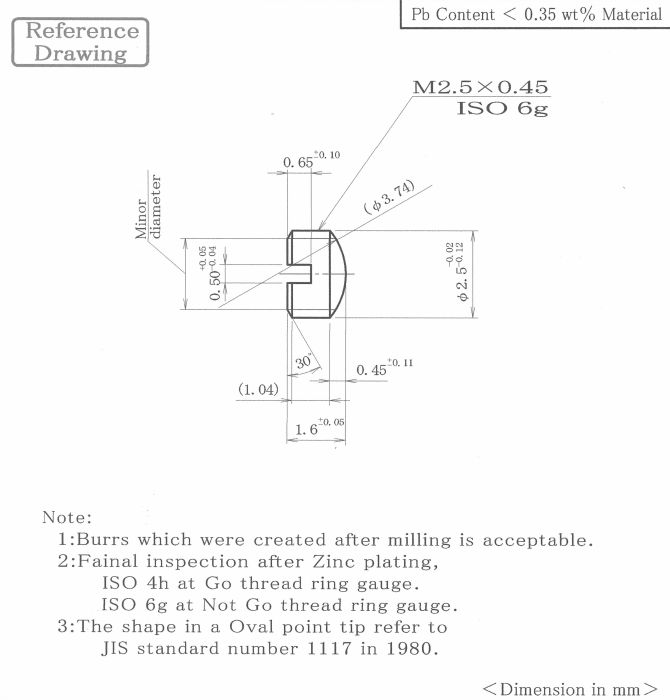

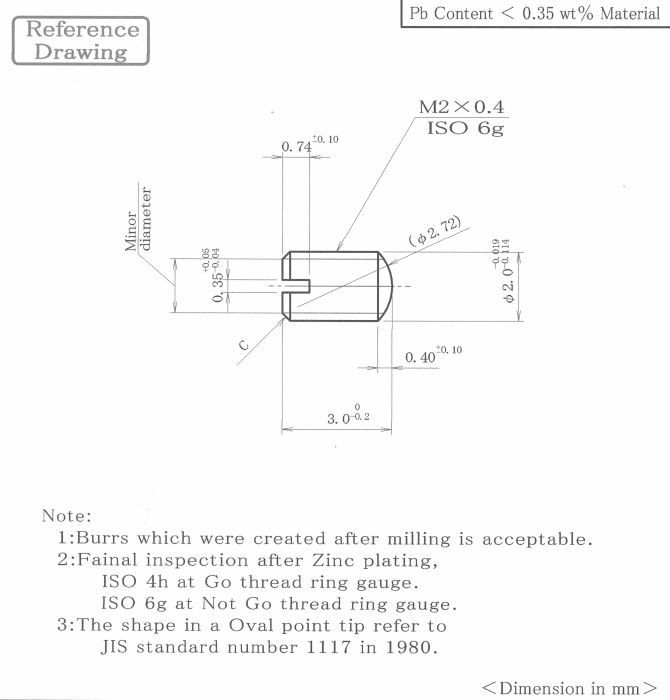

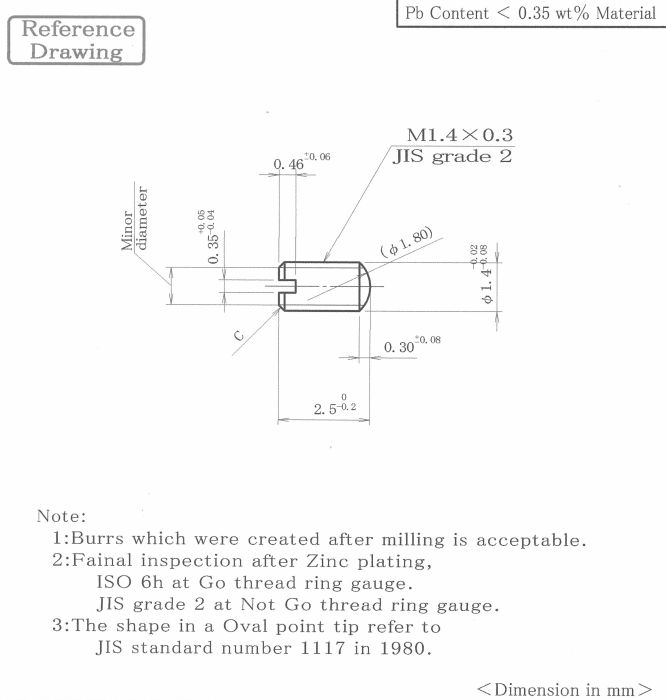

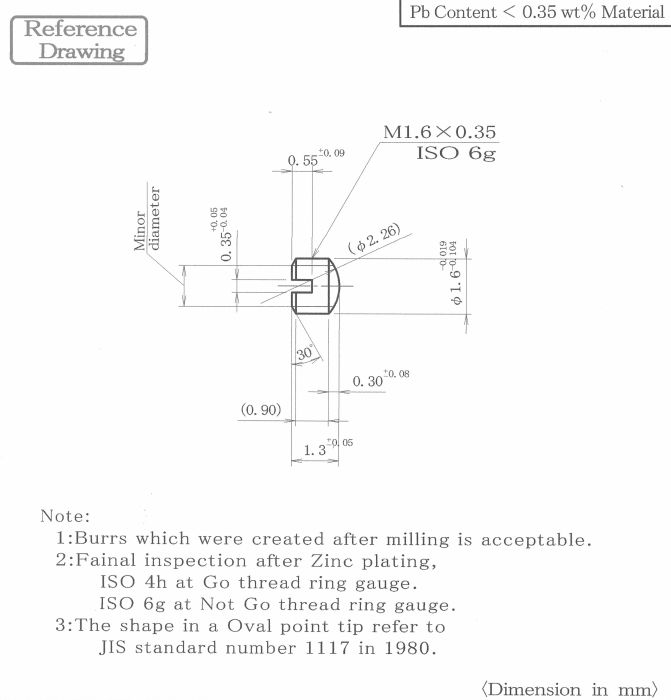

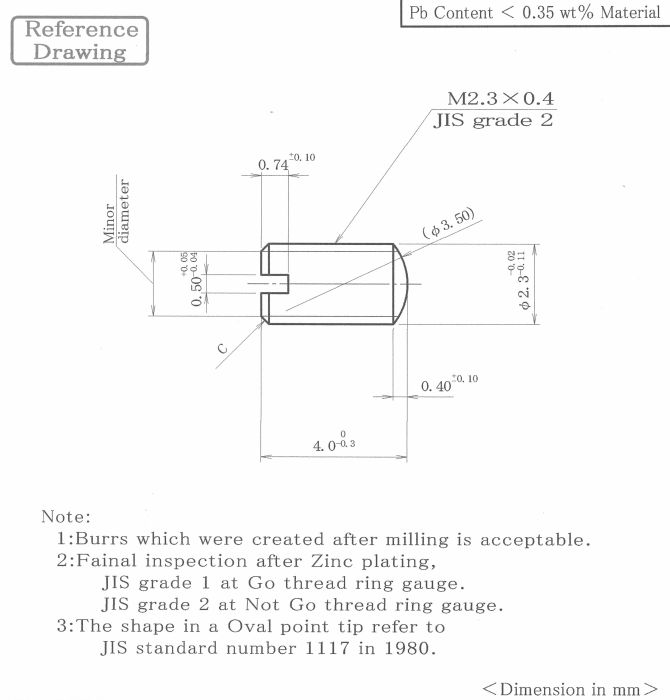

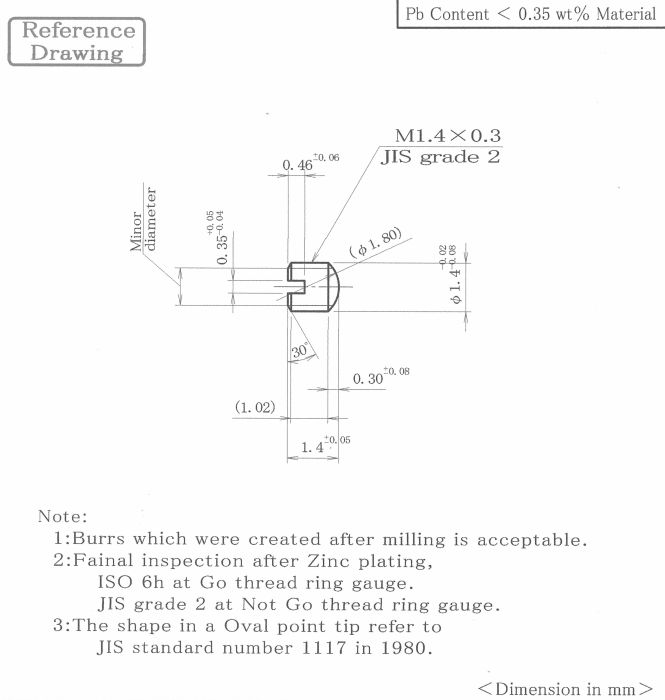

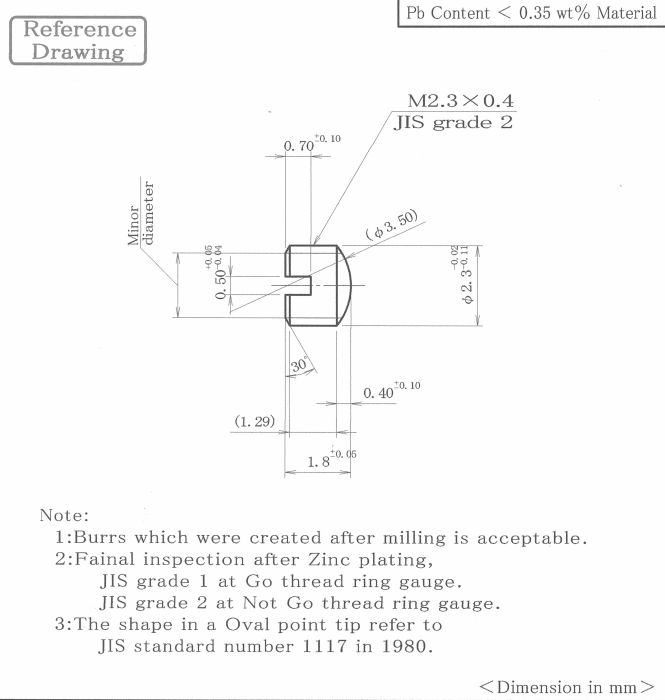

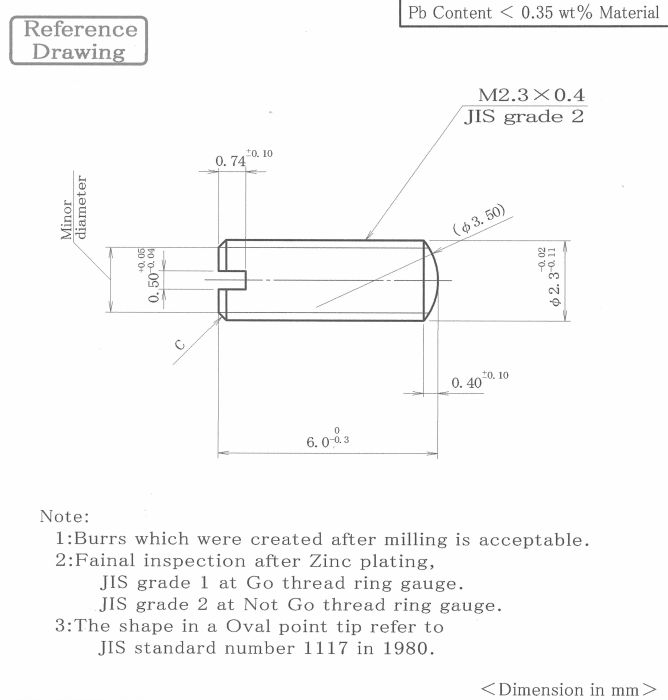

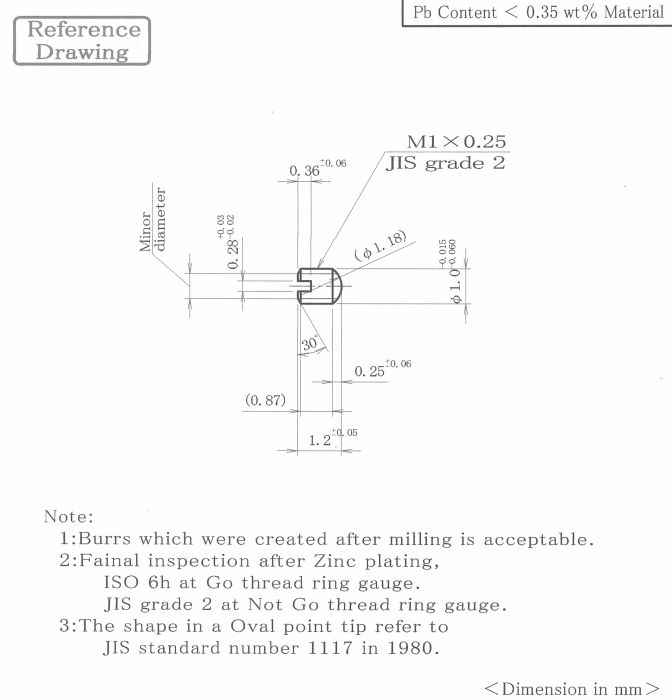

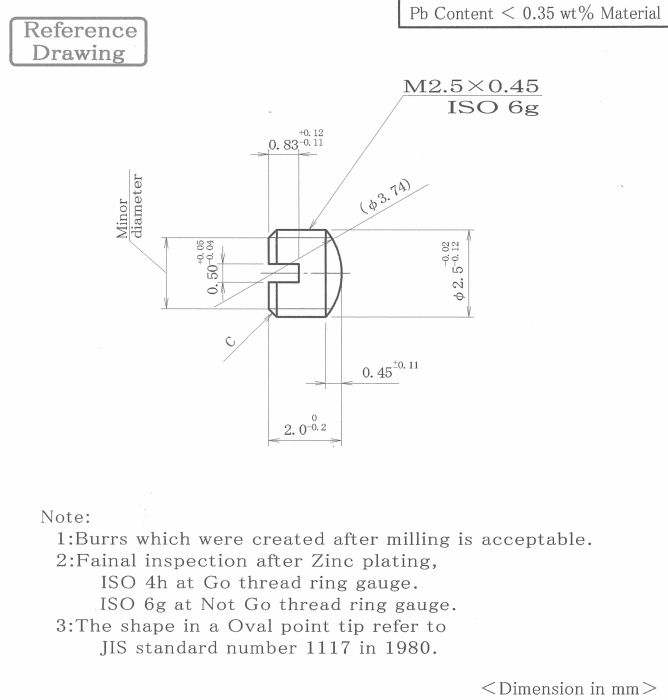

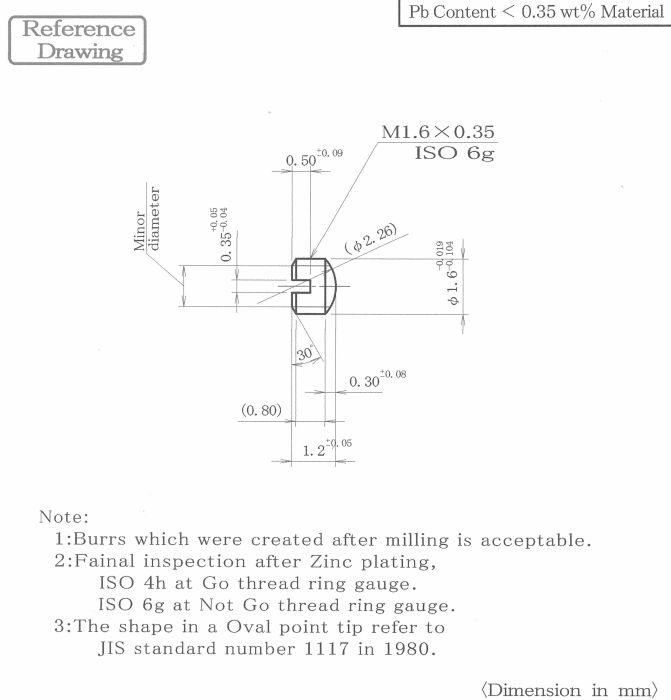

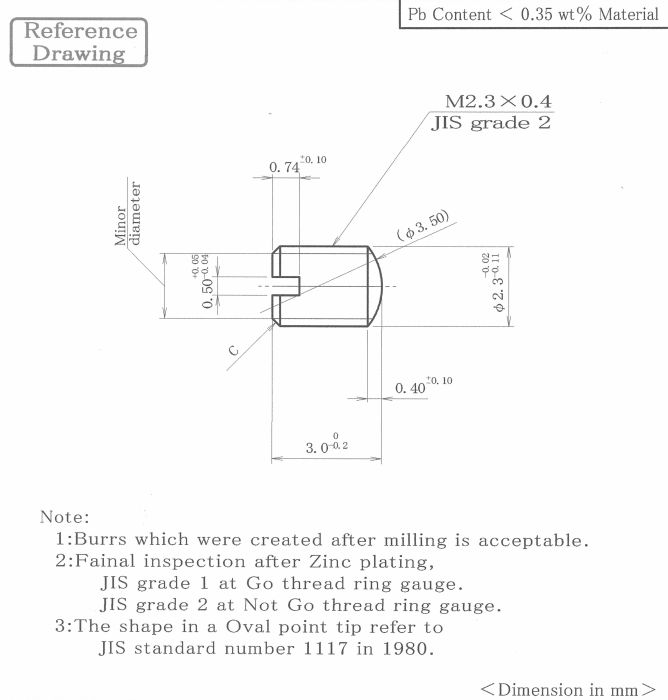

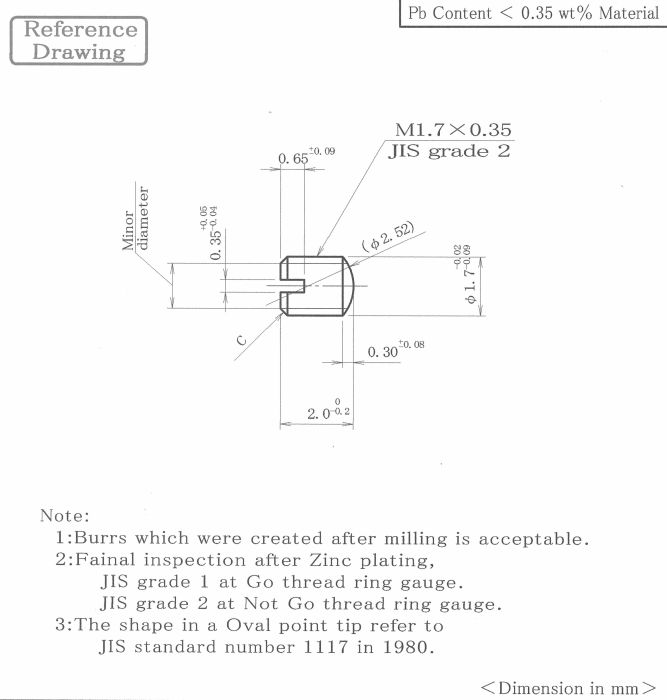

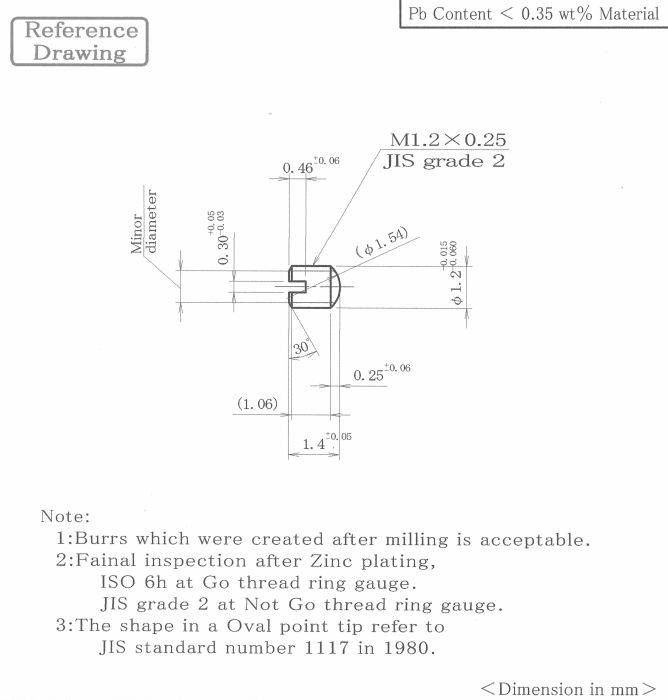

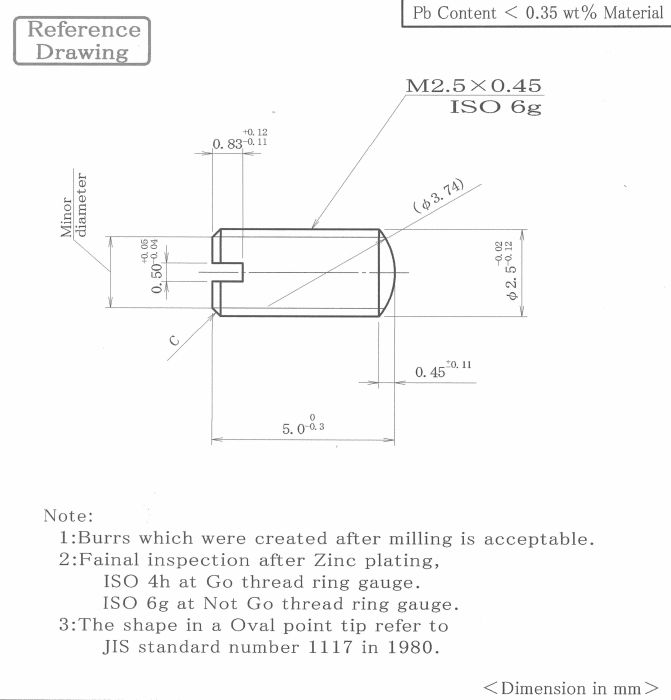

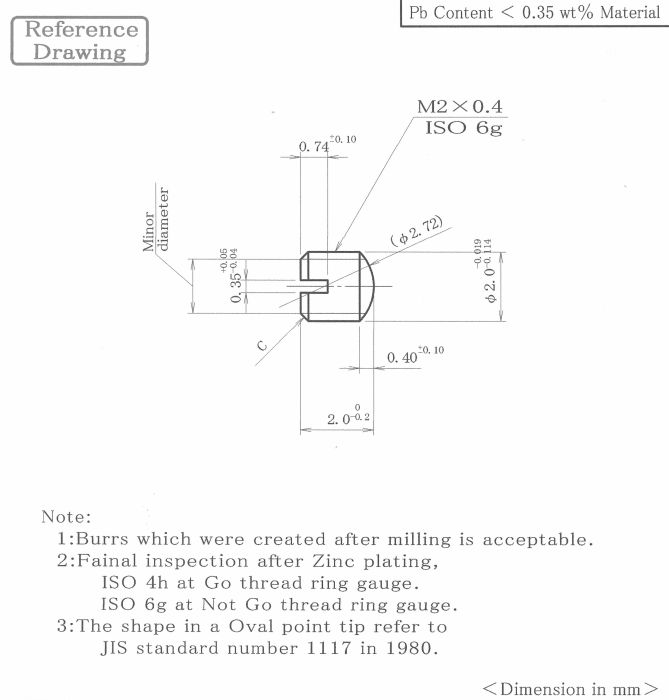

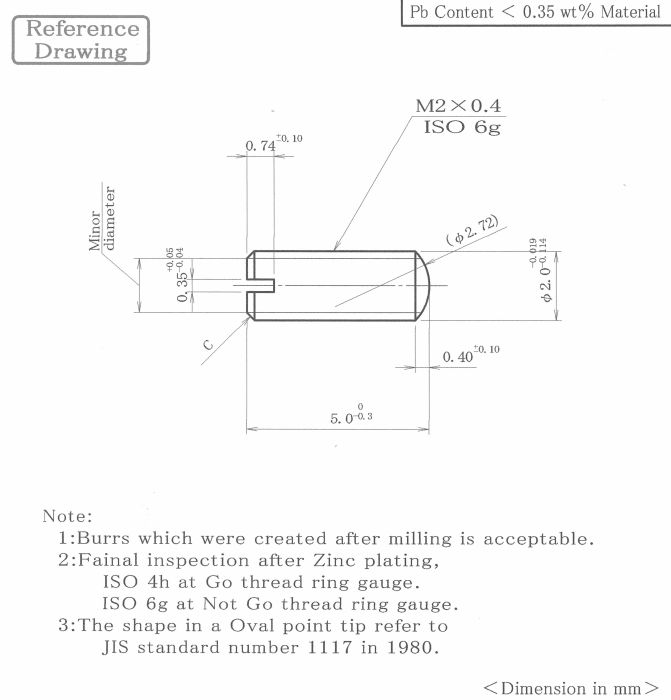

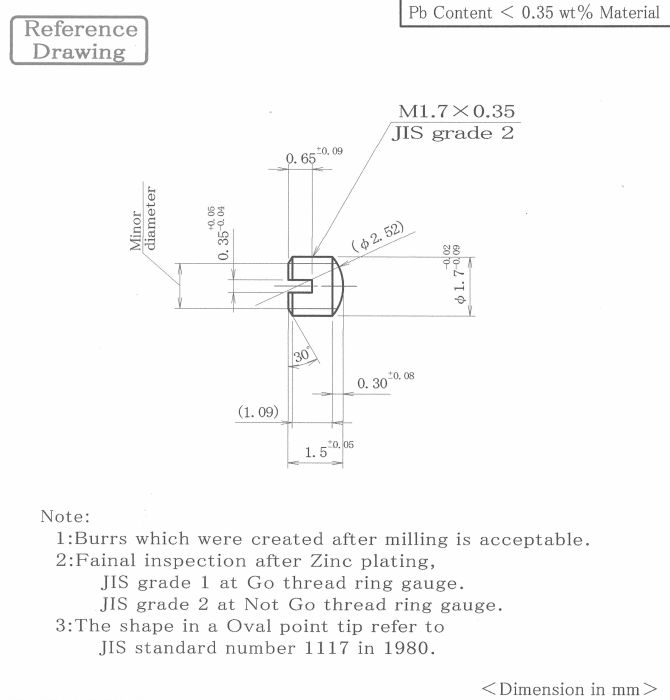

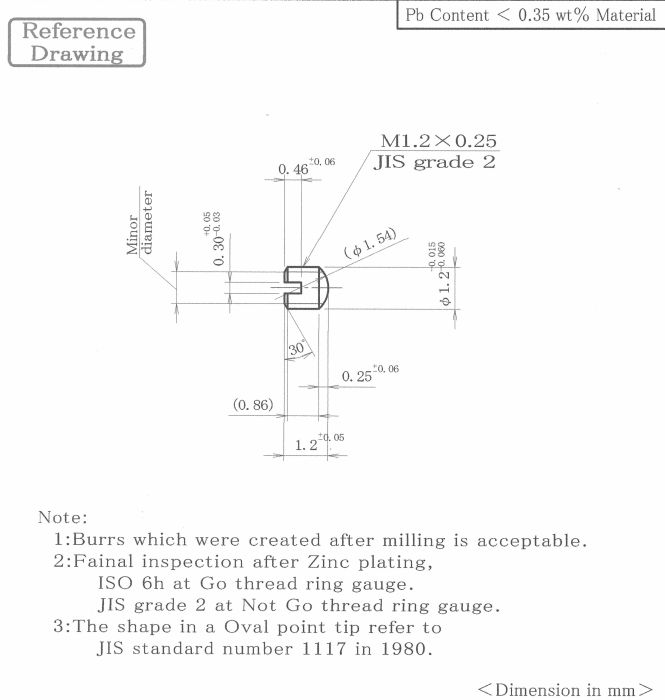

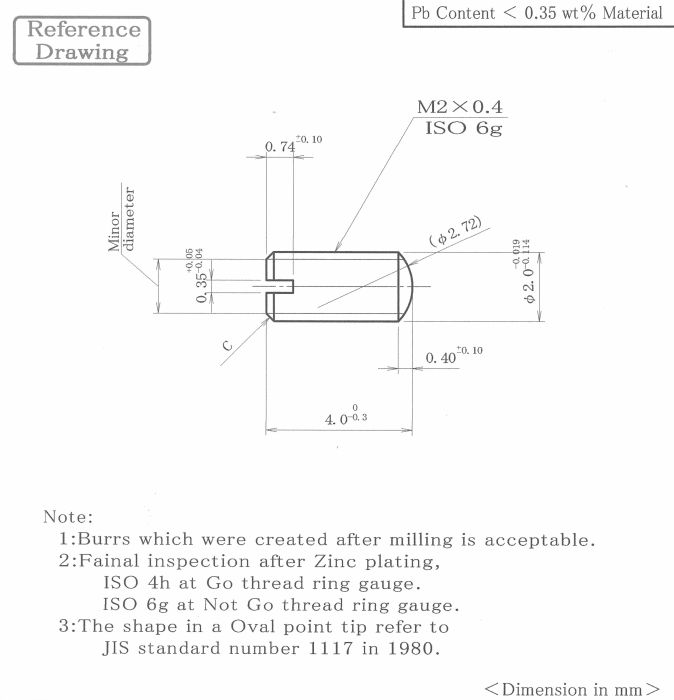

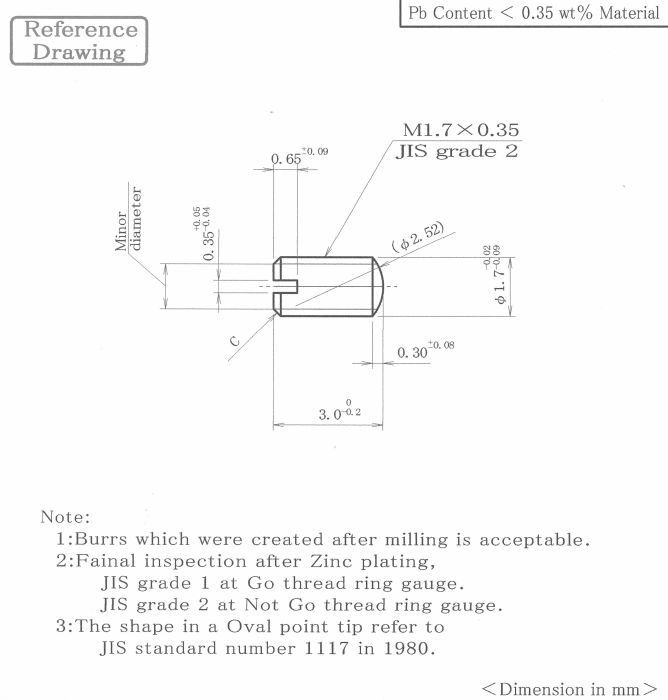

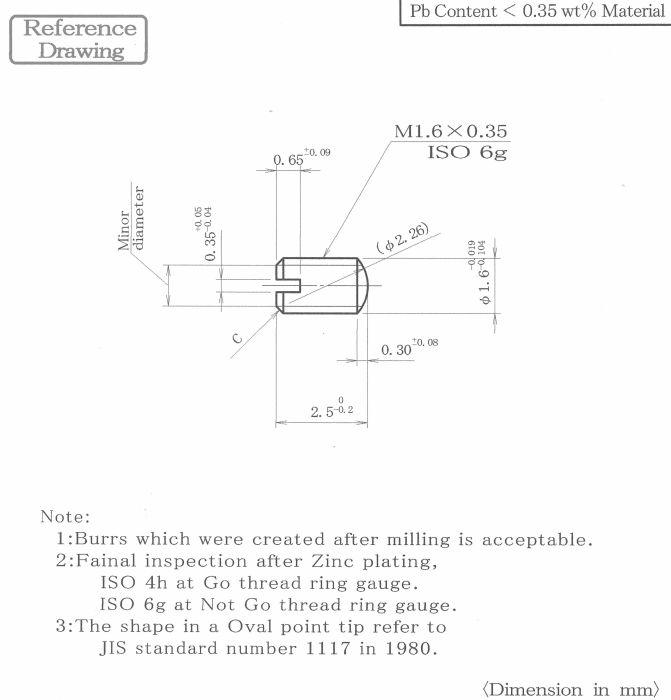

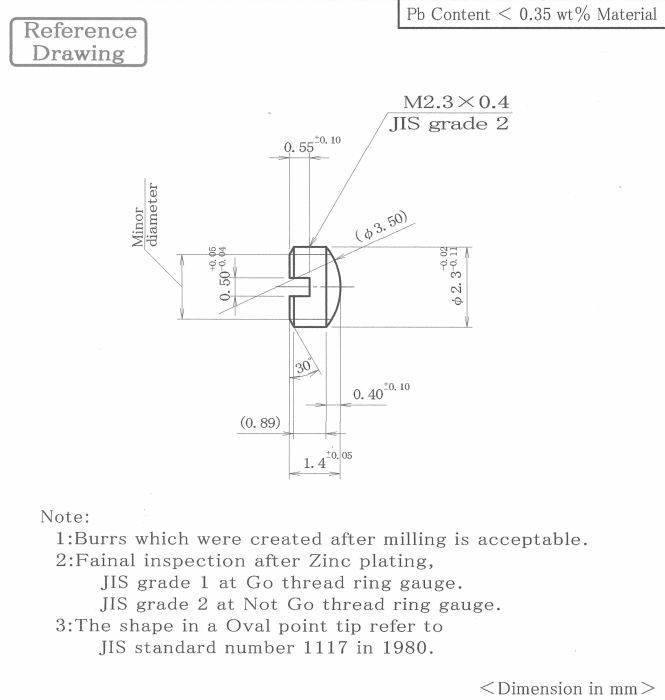

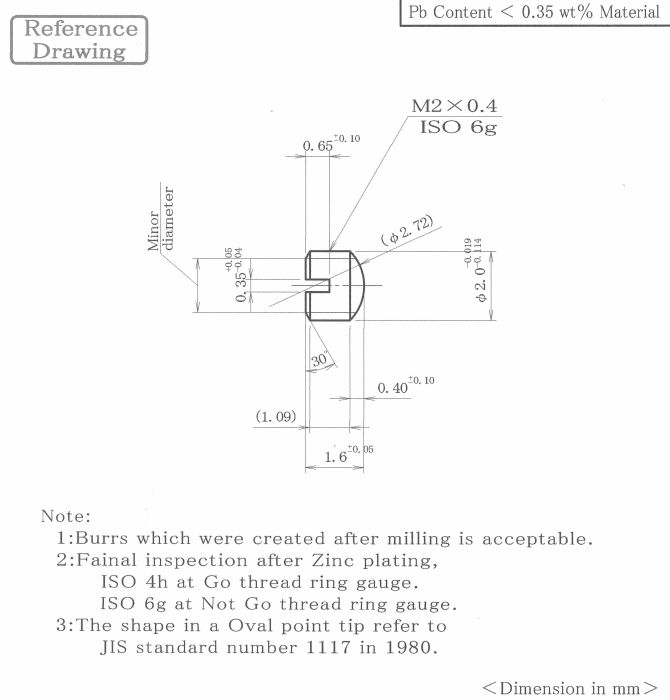

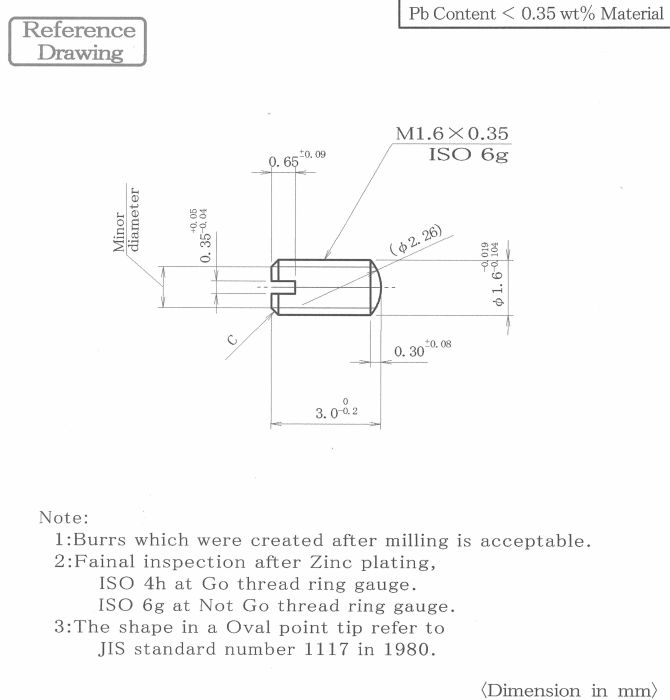

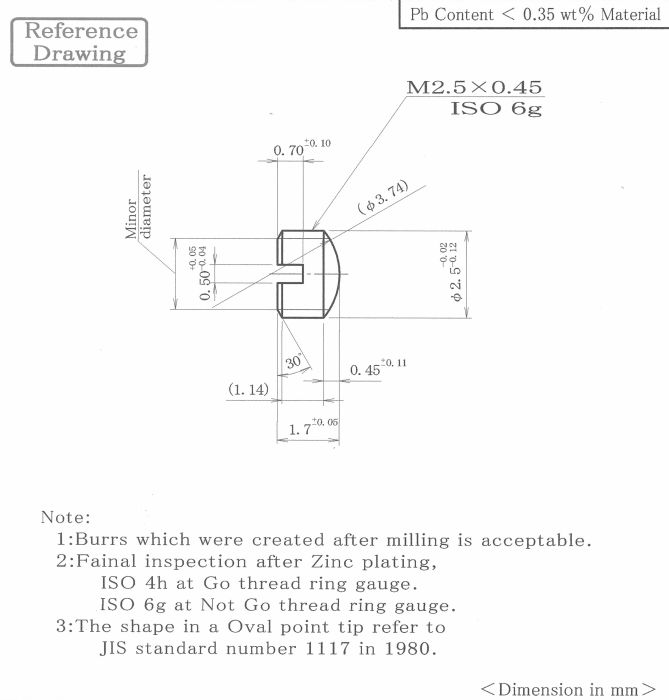

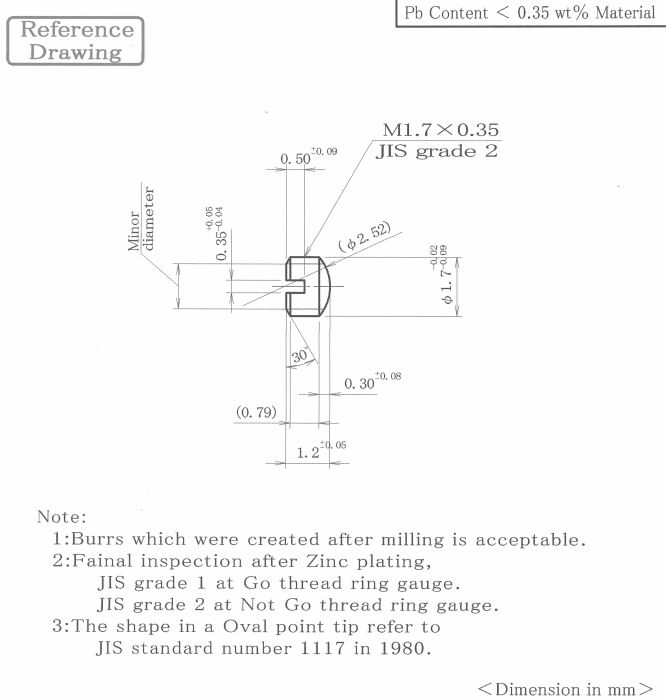

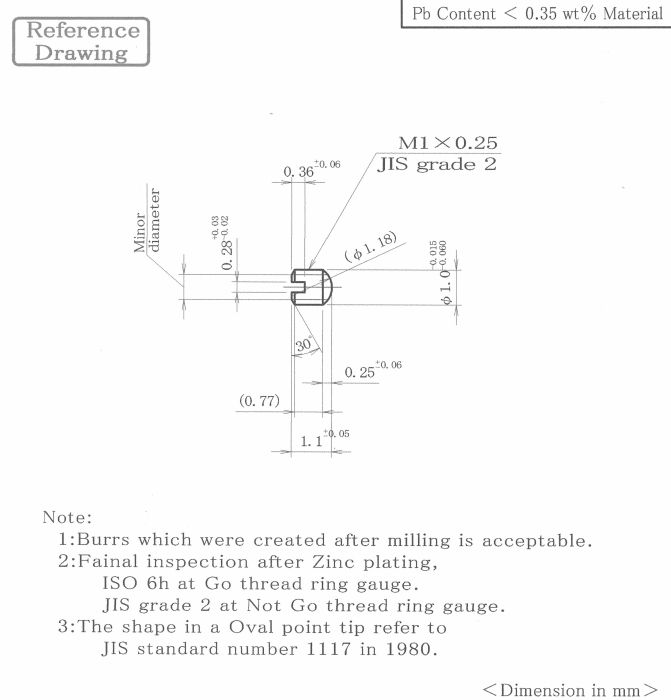

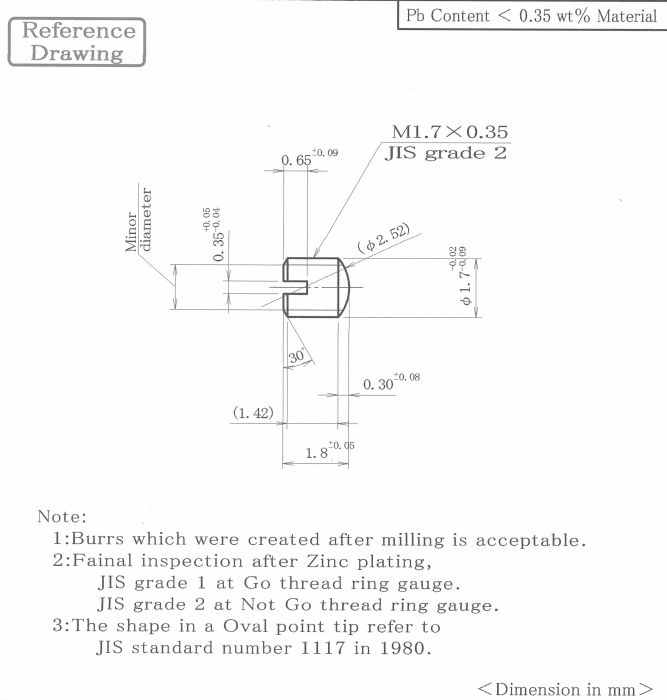

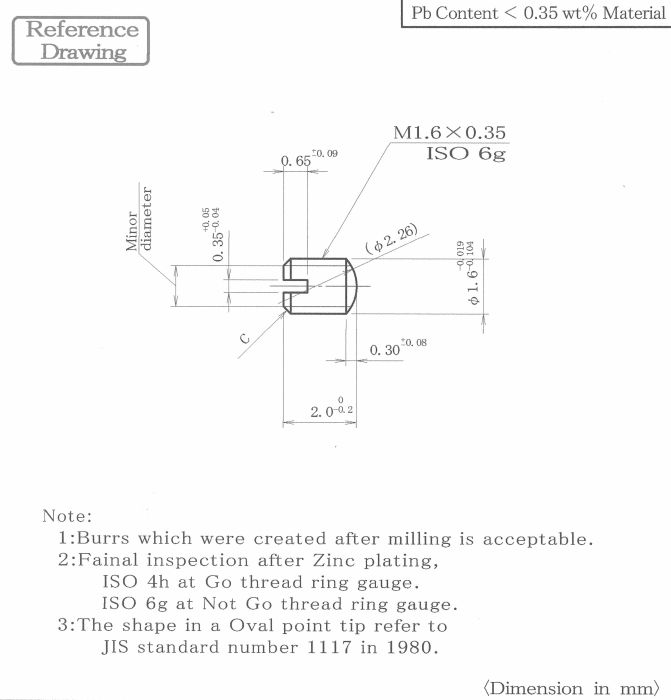

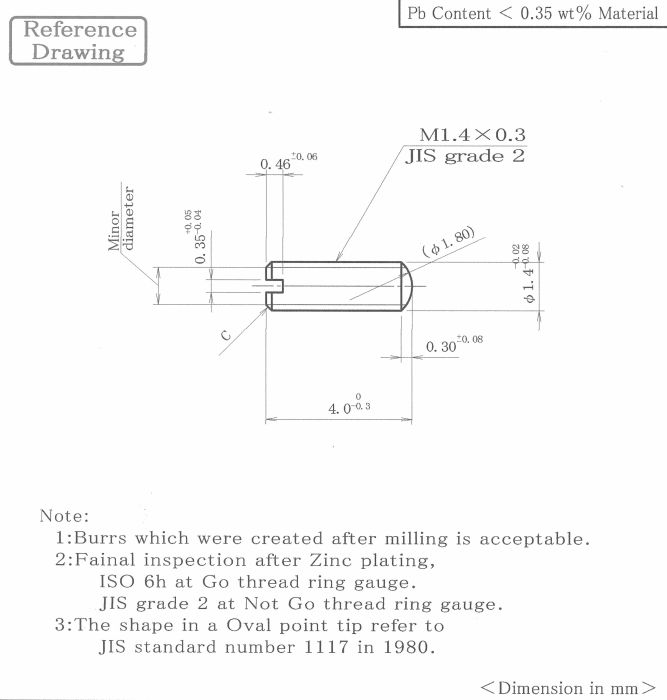

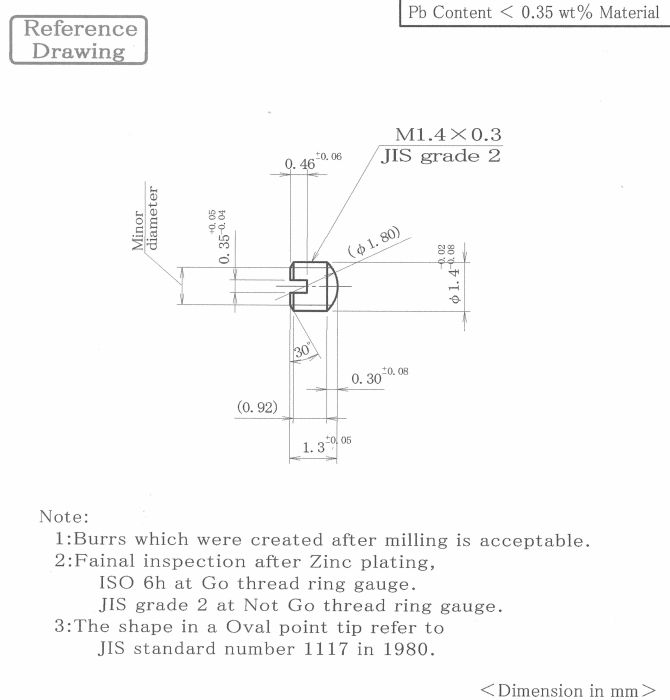

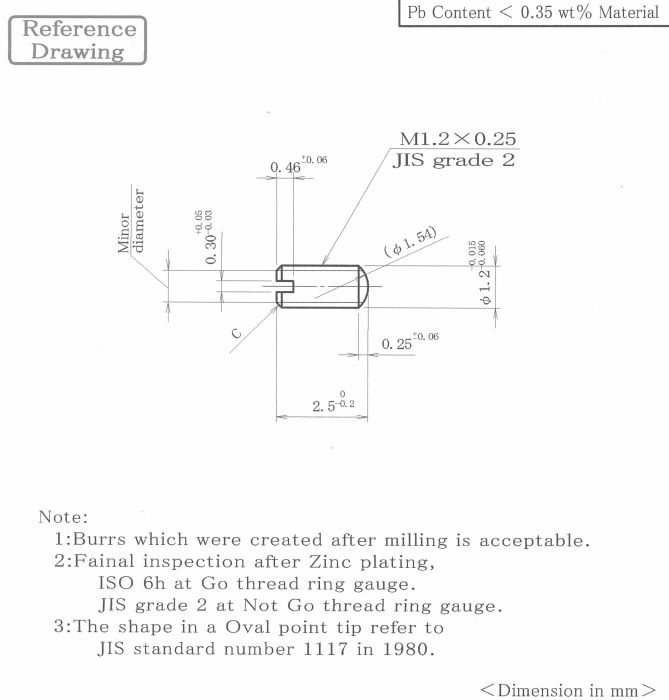

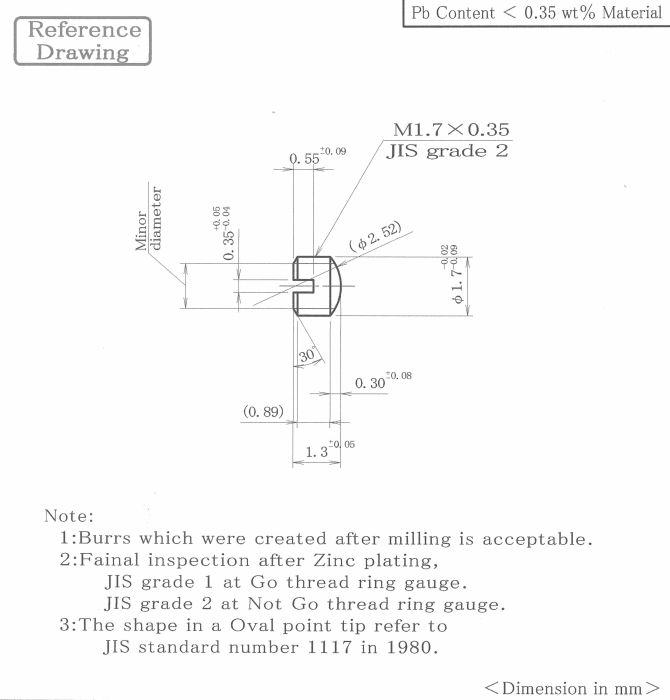

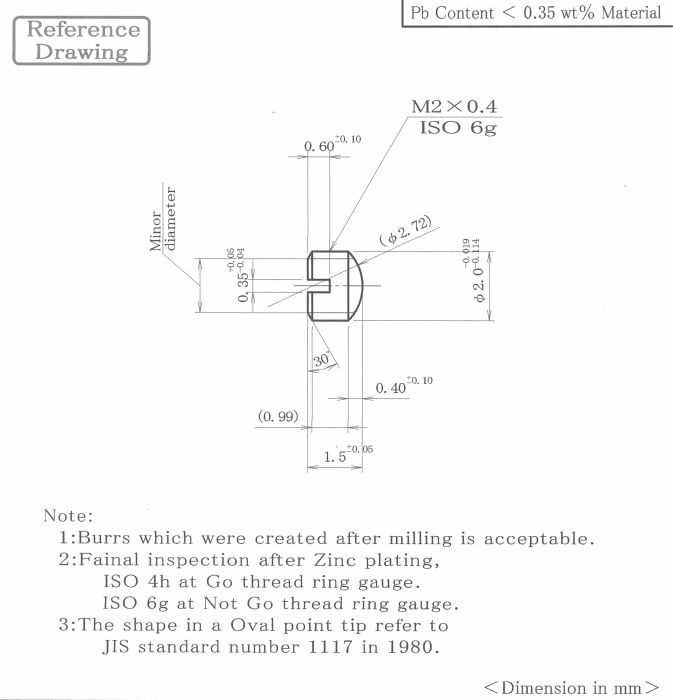

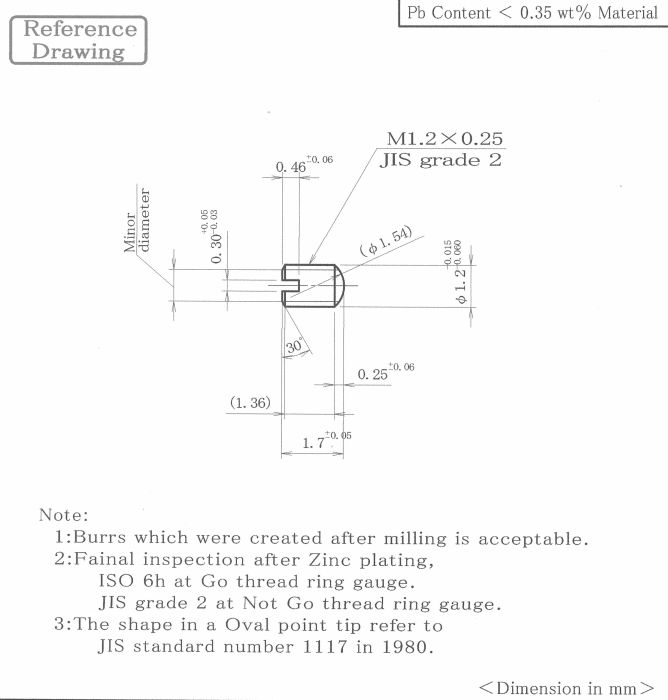

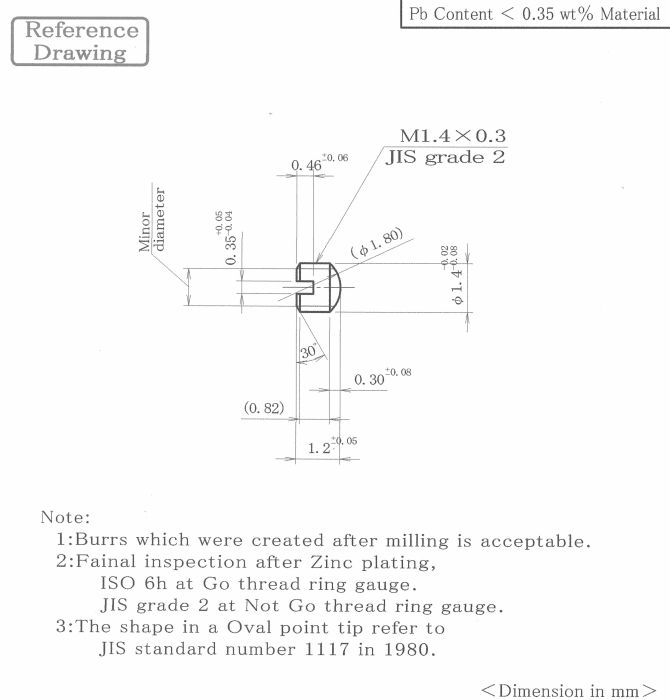

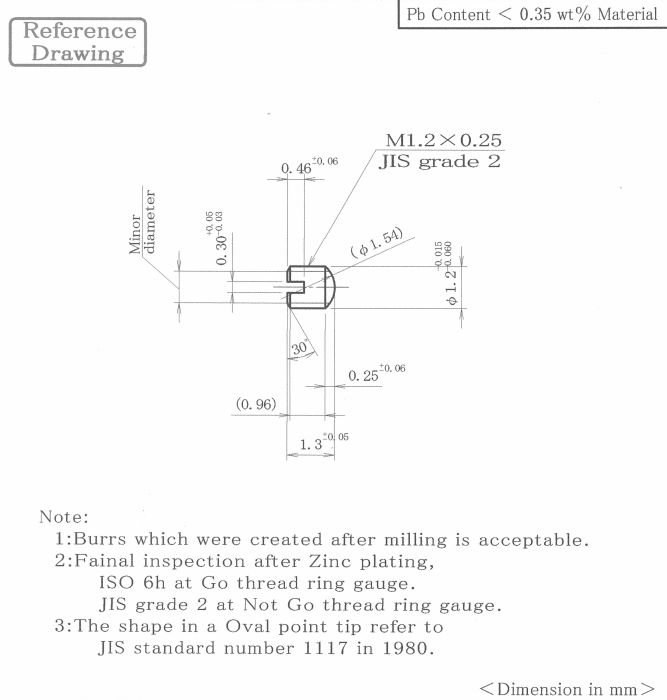

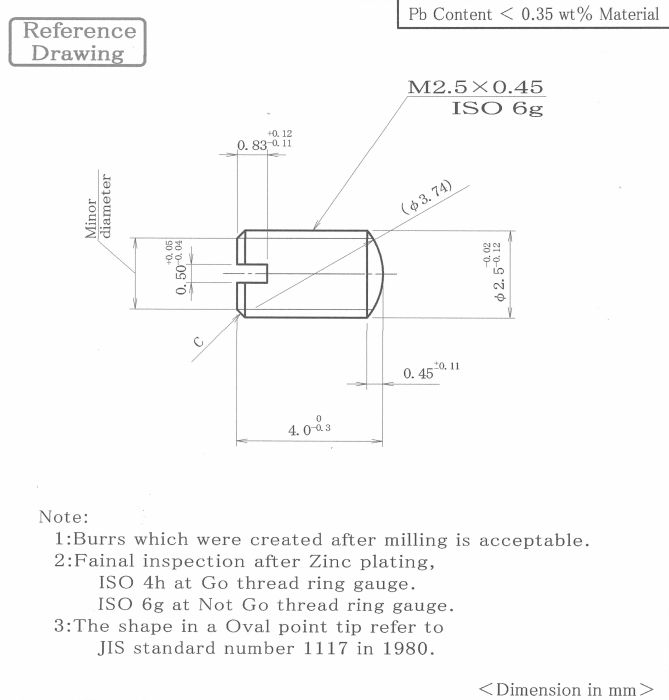

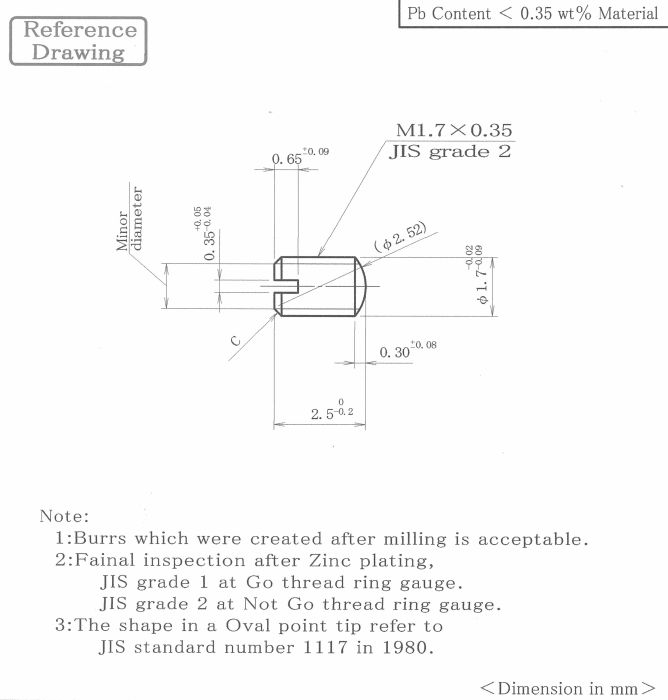

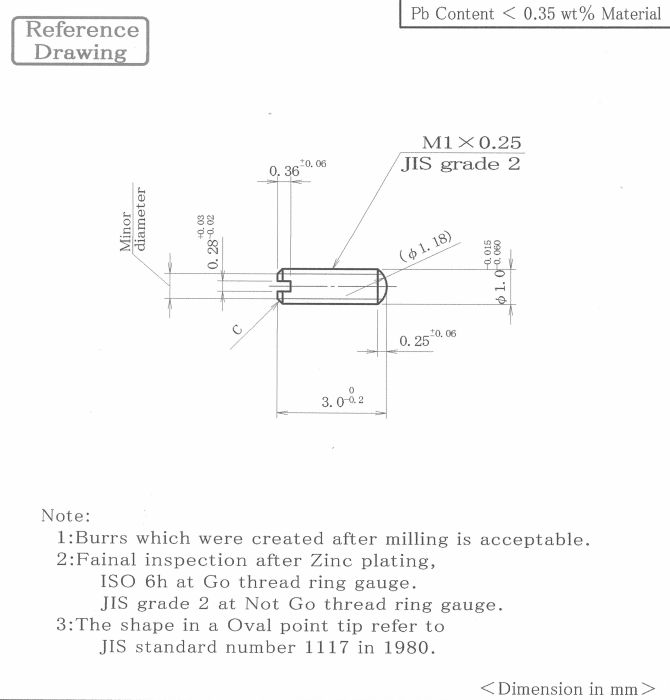

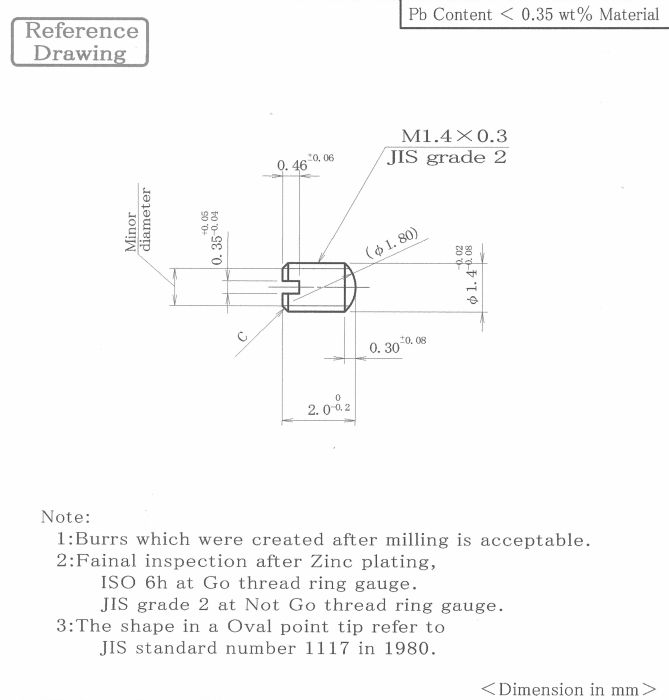

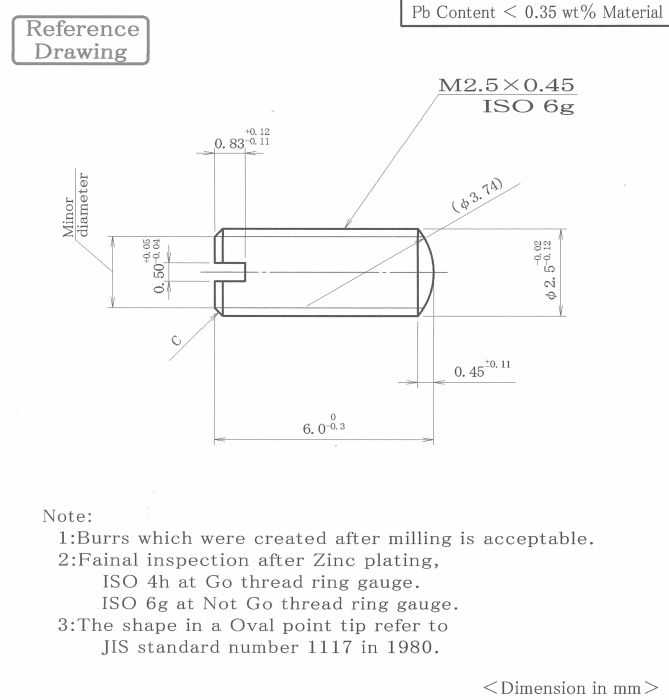

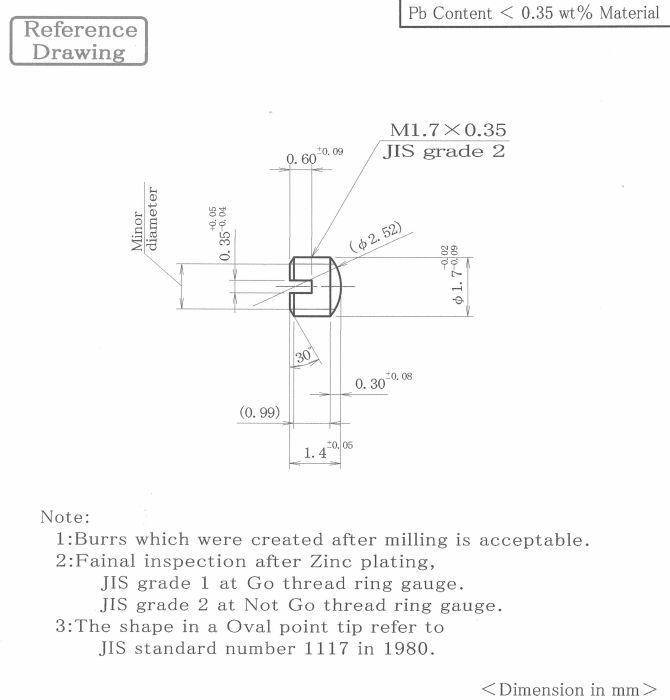

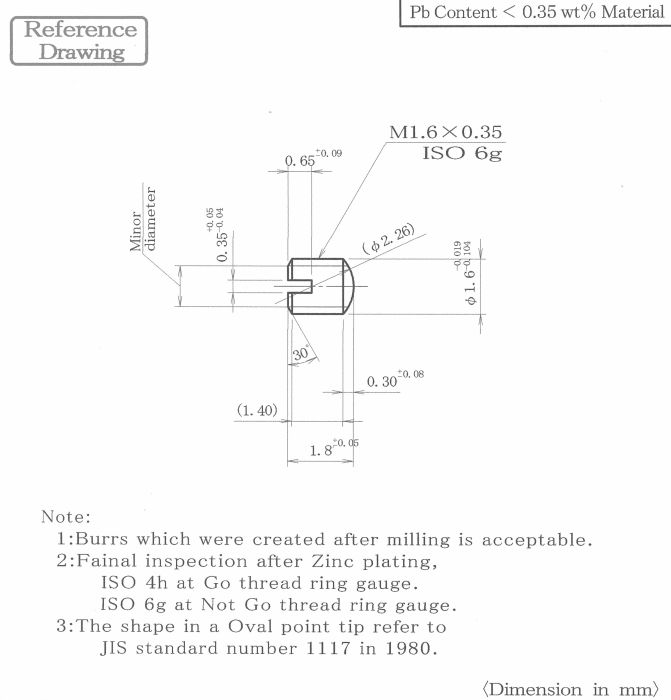

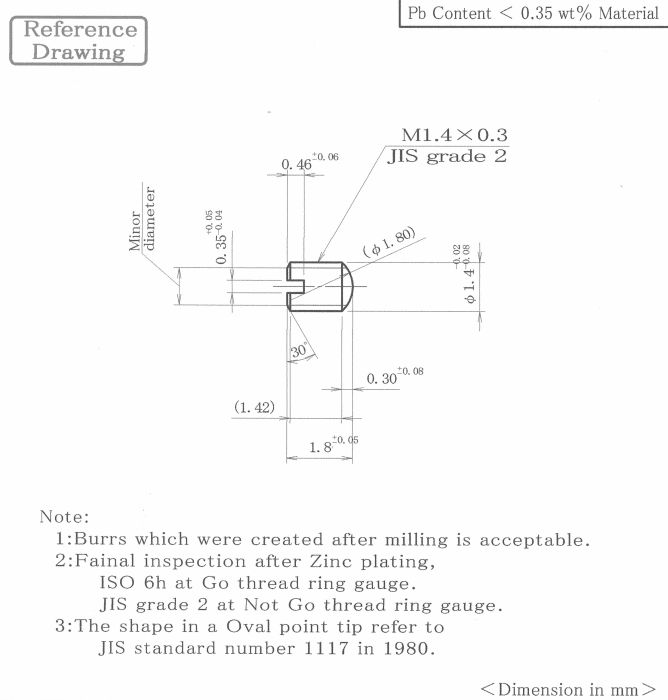

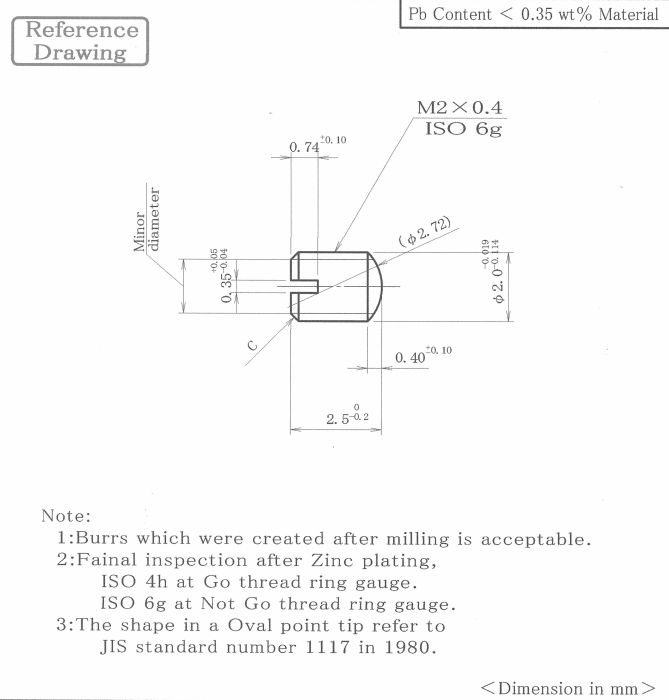

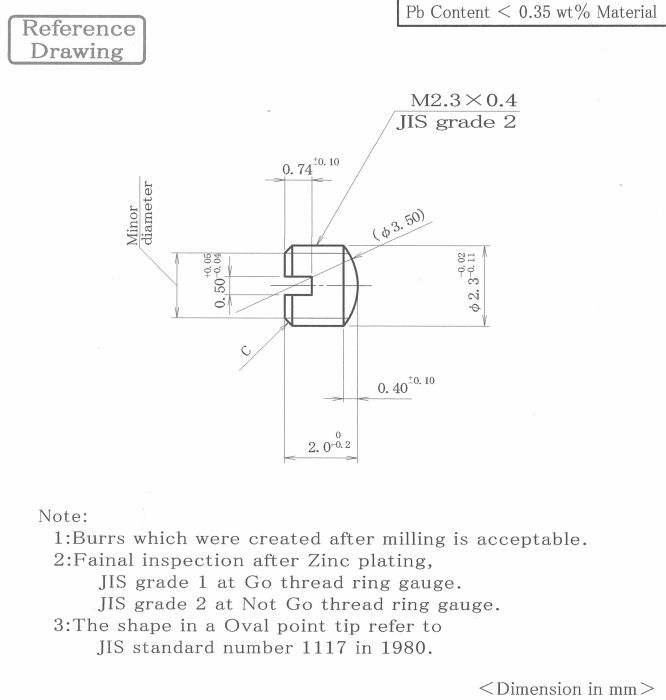

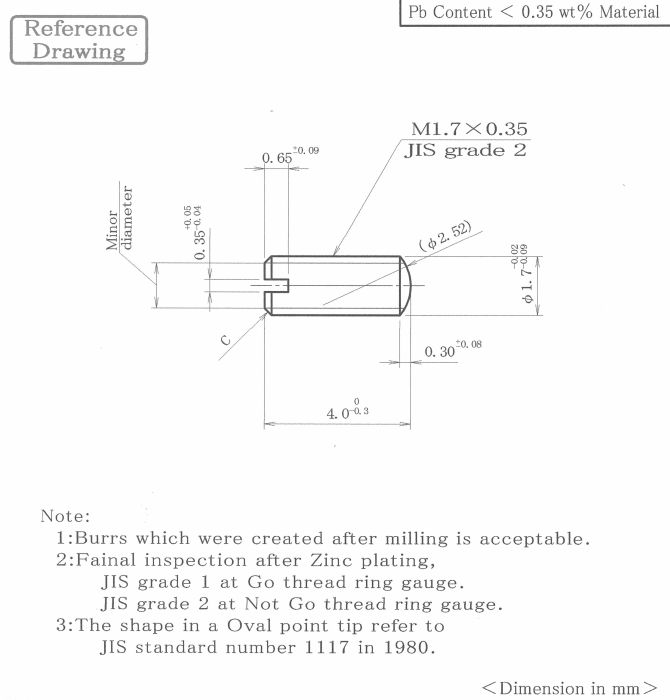

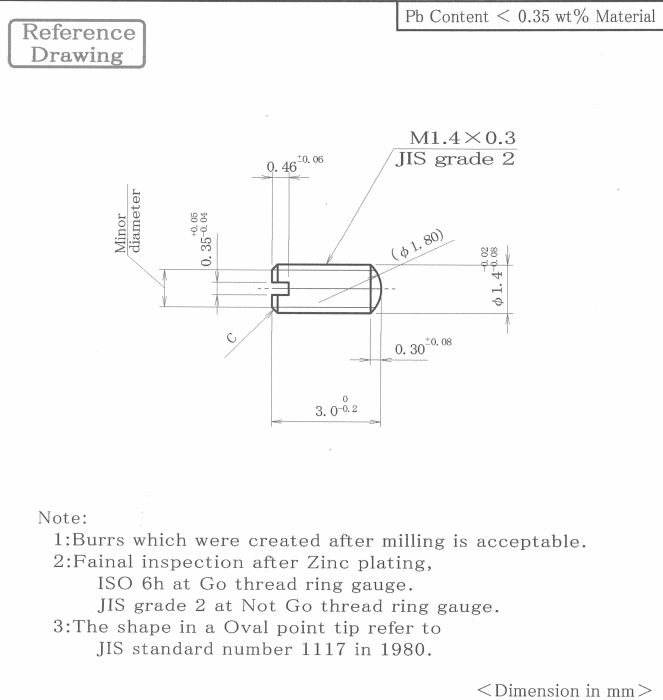

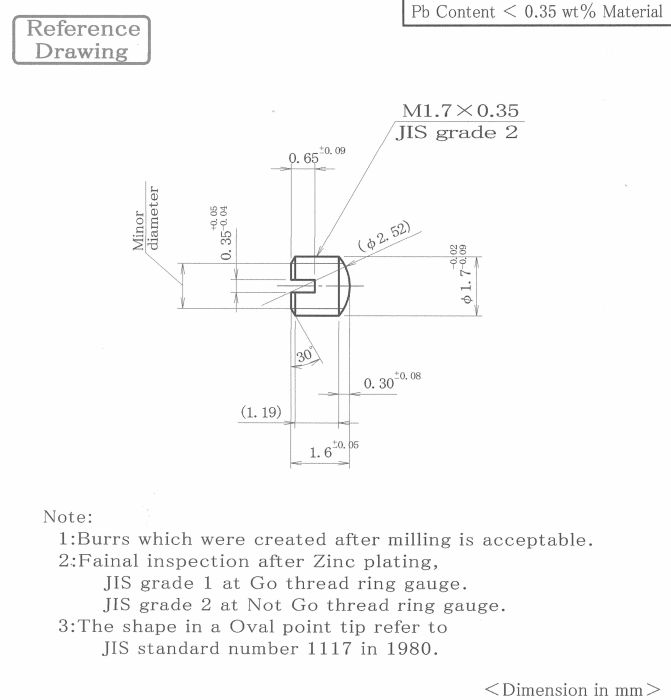

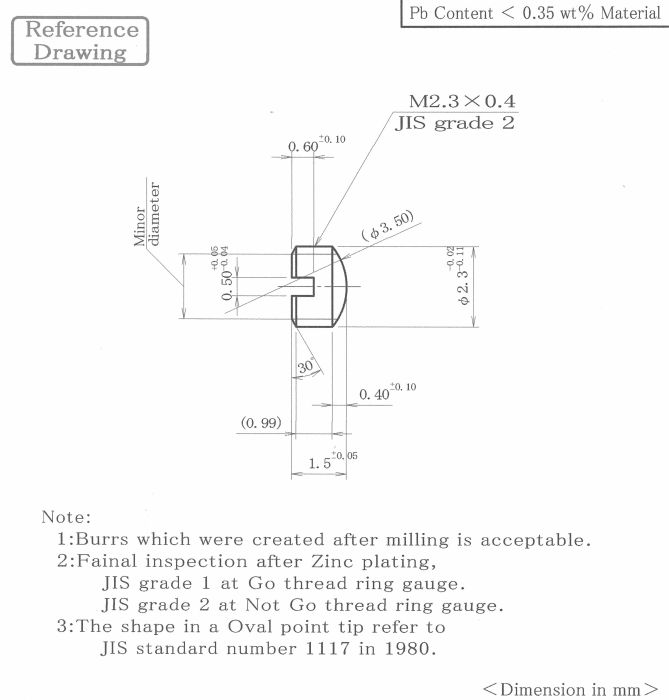

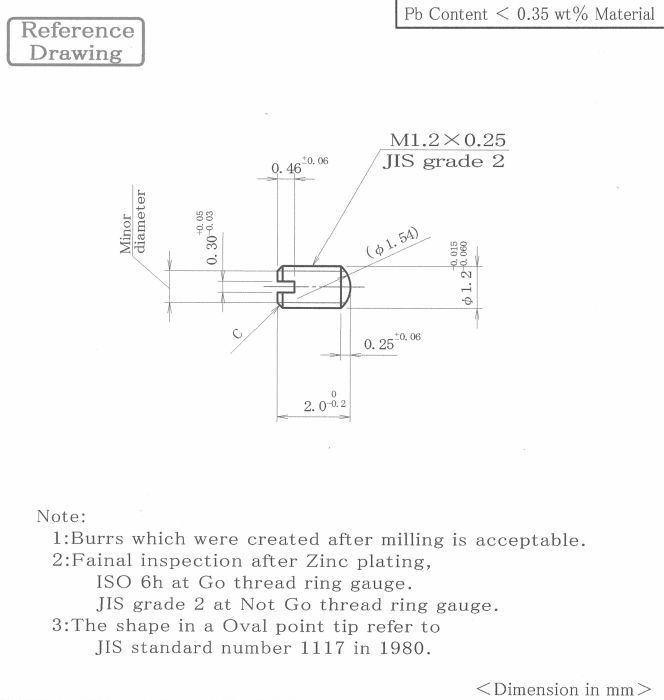

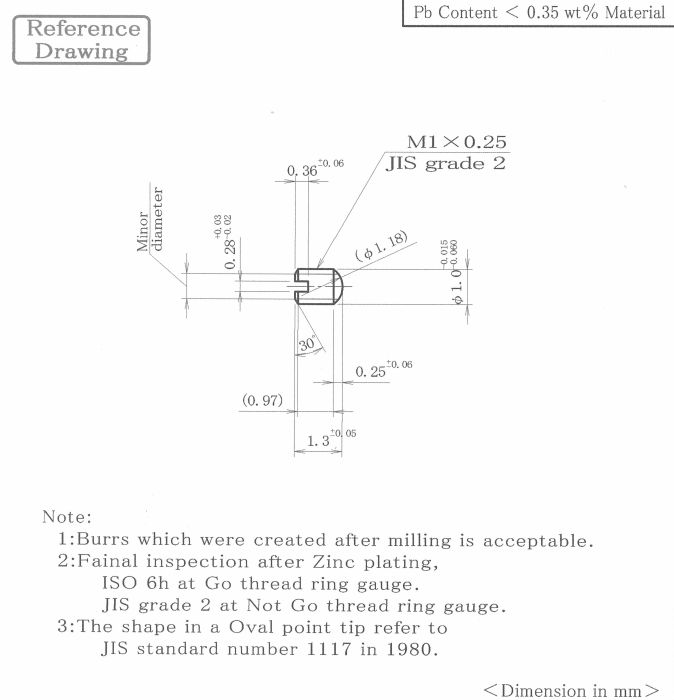

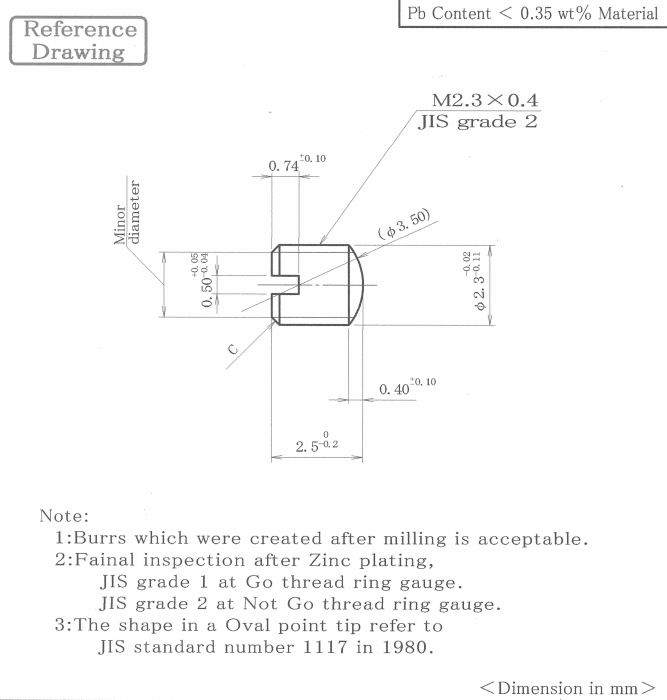

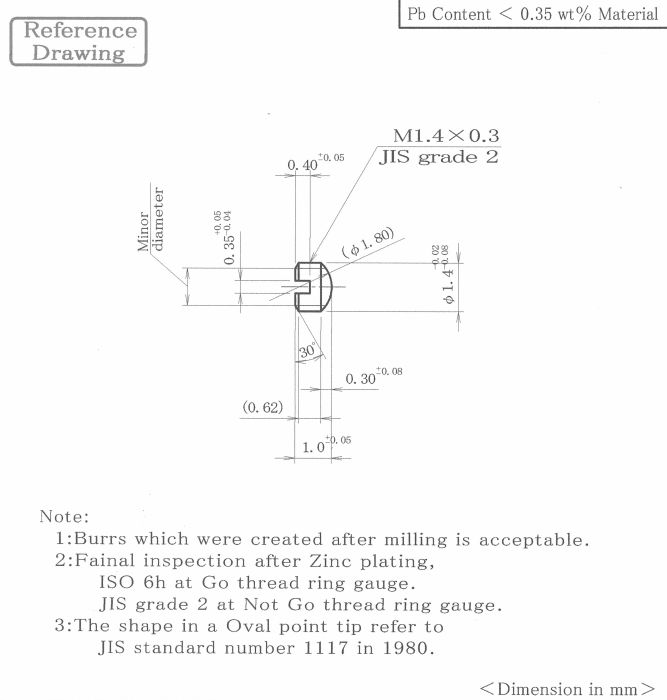

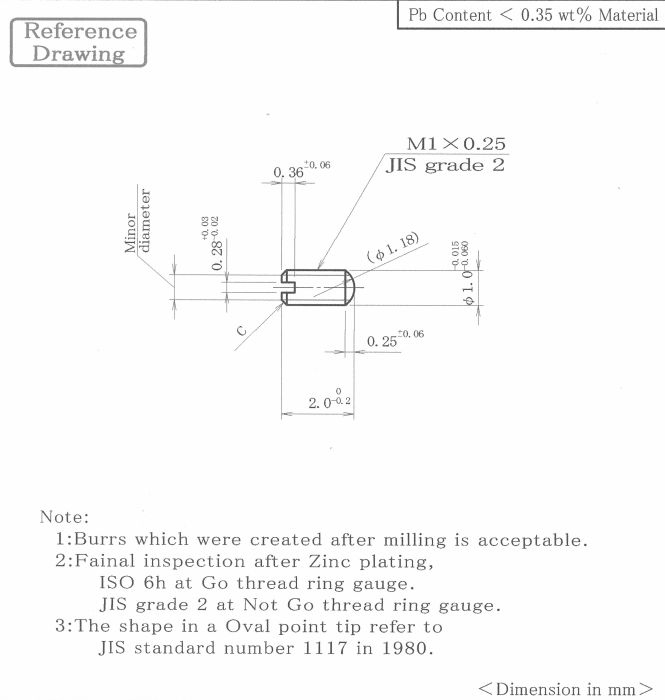

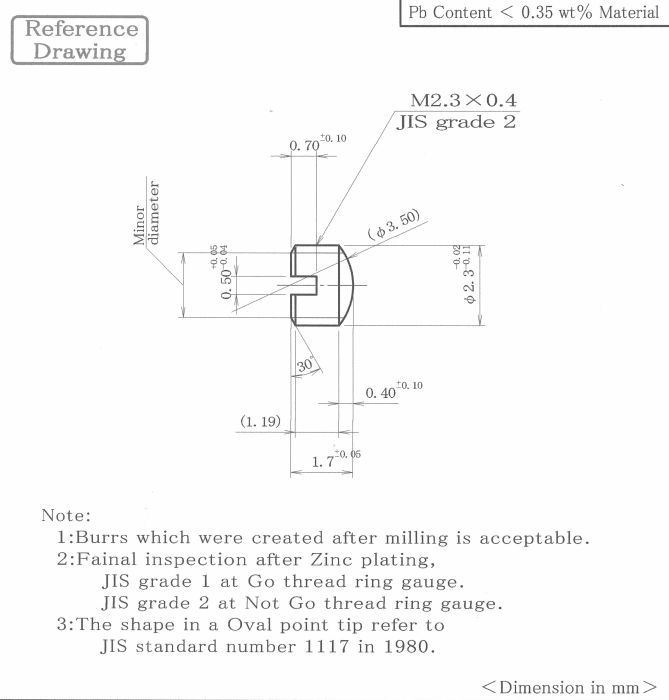

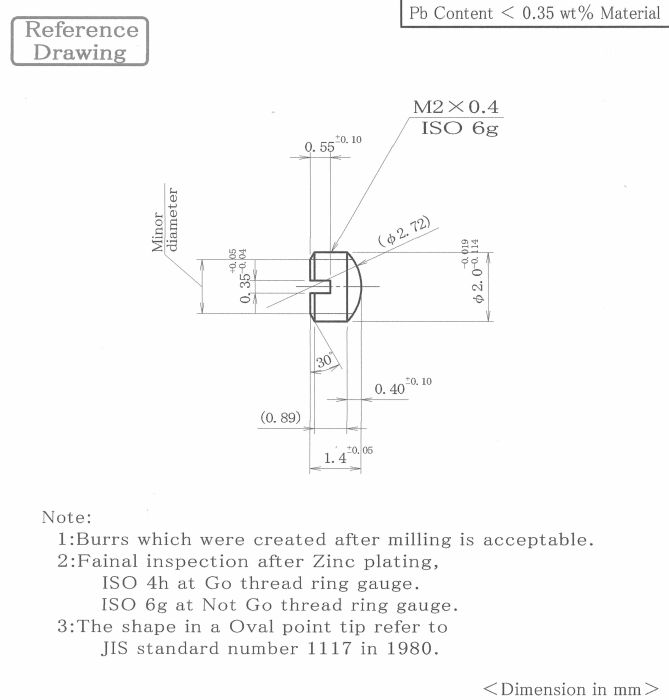

Overall length (L) Tolerance ↓	★ Clicking the “Size” section in the table will display detailed dimensional drawings. ★ (Example) “Size” M2x2.5 is a set screw with a nominal diameter of M2 and an overall length of 2.5mm.
1.0 ±0.05	M1x1	M1.2x1	M1.4x1
1.1 ±0.05	M1x1.1	M1.2x1.1	M1.4x1.1
1.2 ±0.05	M1x1.2	M1.2x1.2	M1.4x1.2	M1.6x1.2	M1.7x1.2
1.3 ±0.05	M1x1.3	M1.2x1.3	M1.4x1.3	M1.6x1.3	M1.7x1.3
1.4 ±0.05	M1x1.4	M1.2x1.4	M1.4x1.4	M1.6x1.4	M1.7x1.4	M2x1.4	M2.3x1.4
1.5 ±0.05	M1x1.5	M1.2x1.5	M1.4x1.5	M1.6x1.5	M1.7x1.5	M2x1.5	M2.3x1.5
1.6 ±0.05	M1x1.6	M1.2x1.6	M1.4x1.6	M1.6x1.6	M1.7x1.6	M2x1.6	M2.3x1.6	M2.5x1.6
1.7 ±0.05	M1x1.7	M1.2x1.7	M1.4x1.7	M1.6x1.7	M1.7x1.7	M2x1.7	M2.3x1.7	M2.5x1.7
1.8 ±0.05	M1x1.8	M1.2x1.8	M1.4x1.8	M1.6x1.8	M1.7x1.8	M2x1.8	M2.3x1.8	M2.5x1.8
2.0 0/-0.2	M1x2	M1.2x2	M1.4x2	M1.6x2	M1.7x2	M2x2	M2.3x2	M2.5x2
2.5 0/-0.2	M1x2.5	M1.2x2.5	M1.4x2.5	M1.6x2.5	M1.7x2.5	M2x2.5	M2.3x2.5	M2.5x2.5
3.0 0/-0.2	M1x3	M1.2x3	M1.4x3	M1.6x3	M1.7x3	M2x3	M2.3x3	M2.5x3
4.0 0/-0.3			M1.4x4	M1.6x4	M1.7x4	M2x4	M2.3x4	M2.5x4
5.0 0/-0.3						M2x5	M2.3x5	M2.5x5
6.0 0/-0.3						M2x6	M2.3x6	M2.5x6
8.0 0/-0.3
10.0 0/-0.3
12.0 0/-0.4
